Yagi Directional Antenna 3G/4G/LTE 9dBi 800MHz-960MHz and 1.7-2.5GHz SMA Male cable to TS-9 adapter

by Tupavco
$29.99

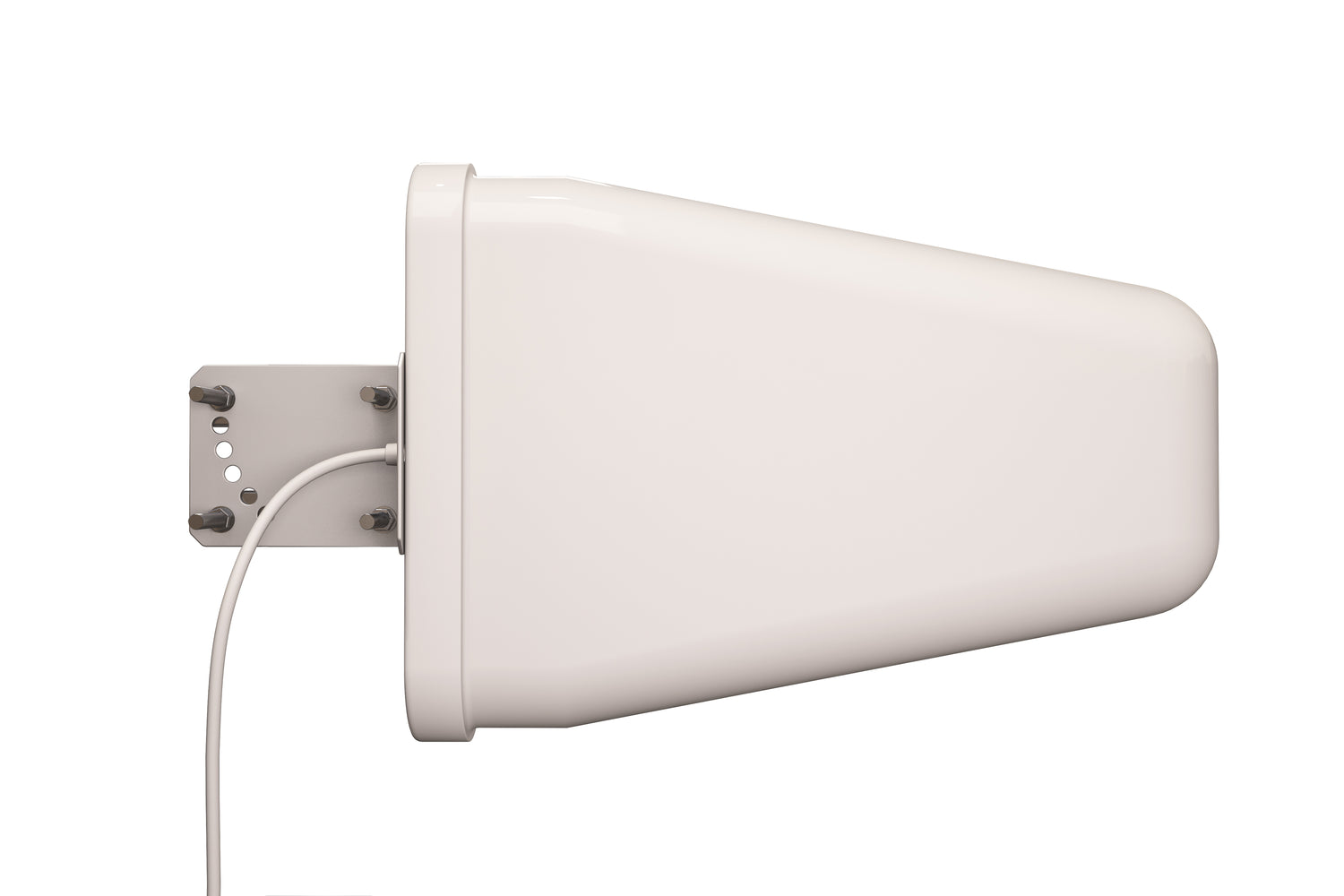

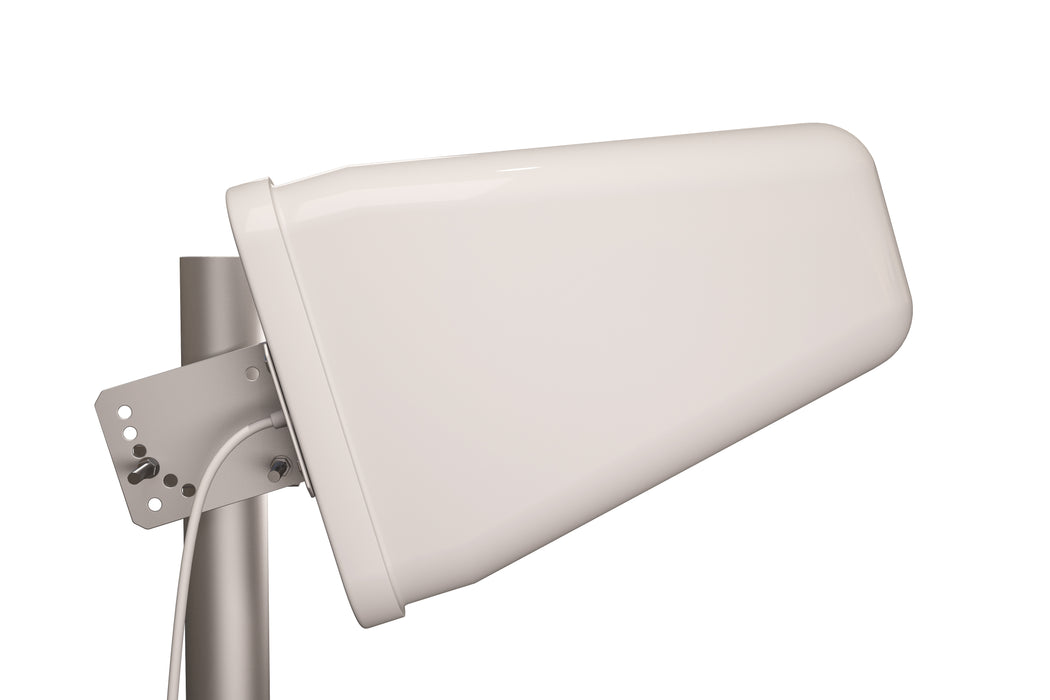

Yagi Directional Antenna

4G/LTE 9dBi Directional Roof Antenna 806MHz-960MHz and 1.7GHz-2.5GHz Range

UPC: 0741360888142
Model Number: TP514

The main benefit of this wideband Yagi antenna is its ability to focus its signal in one direction leading to greater gain figures. This cellular antenna is designed for use on stationary objects such as buildings or houses. This unique multi-band directional antenna covers the wide multi-range spectrum and can be used for cellular frequencies including North American standard 850 and 1900 MHz bands.

Yagi Cell Antenna TP514 is a roof antenna and in most cases cannot be attached directly to the device (wifi router, signal booster, etc.) without some type of cable converter/adapter. This is the directional antenna and you will need to know the direction of your source signal. This Antenna has SMA-Male with an additional TS-9 adapter/connector to fit and connector type on your device. Also, you can put an amp of some kind of signal booster between the device and the antenna. Please check your cellular provider frequency to be sure that the antenna range will cover that frequency.

Cell Phone Signal Booster Log Periodic Cellular Antenna

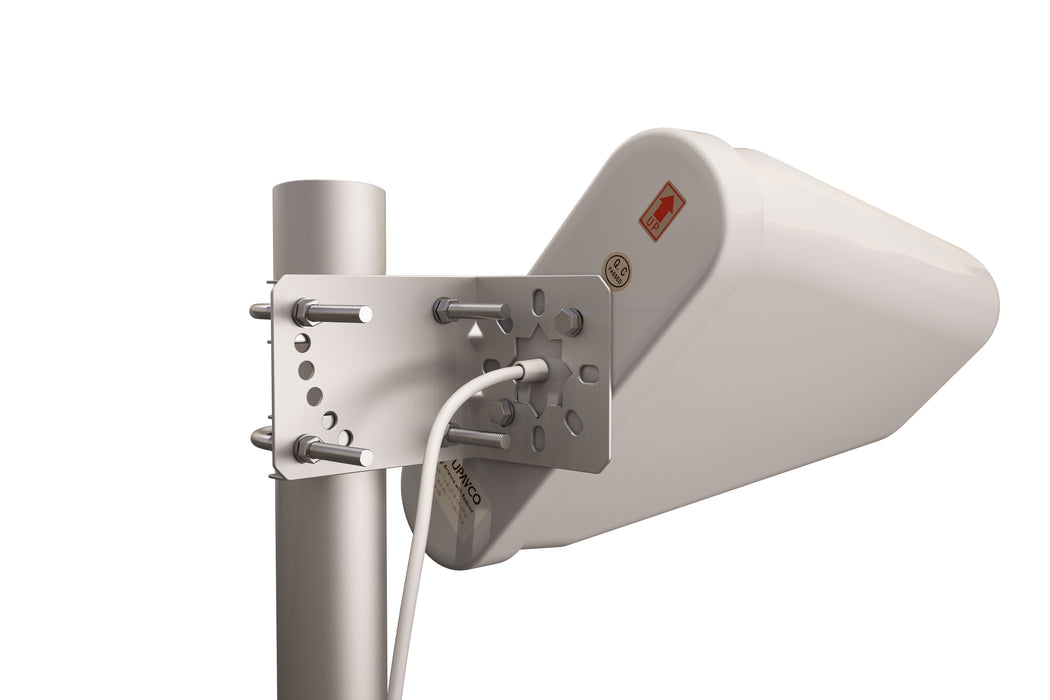

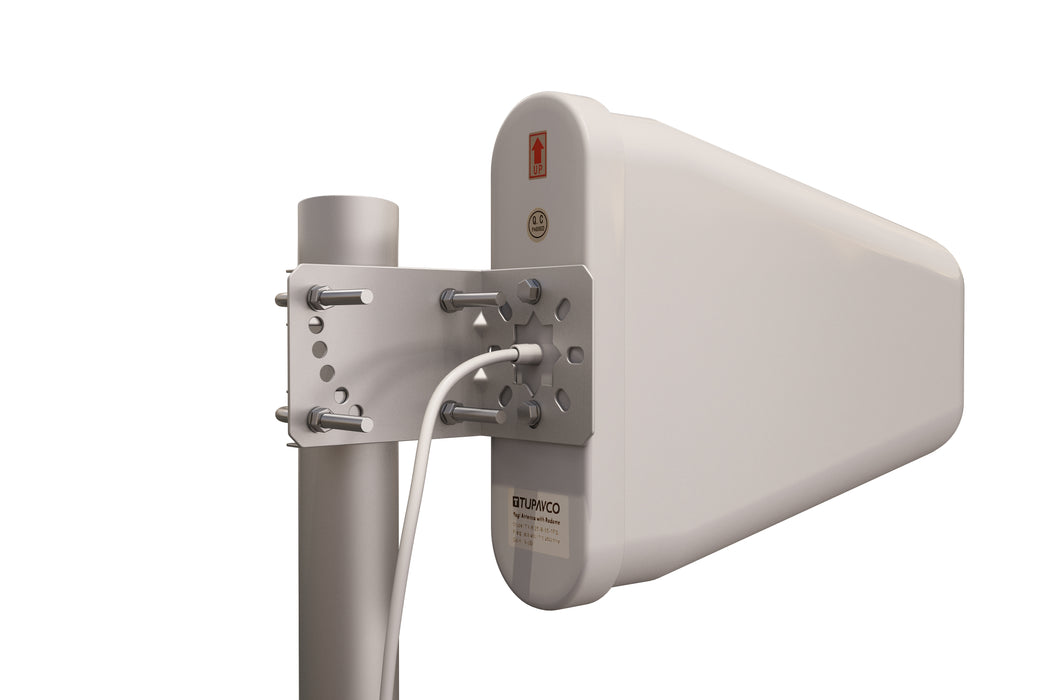

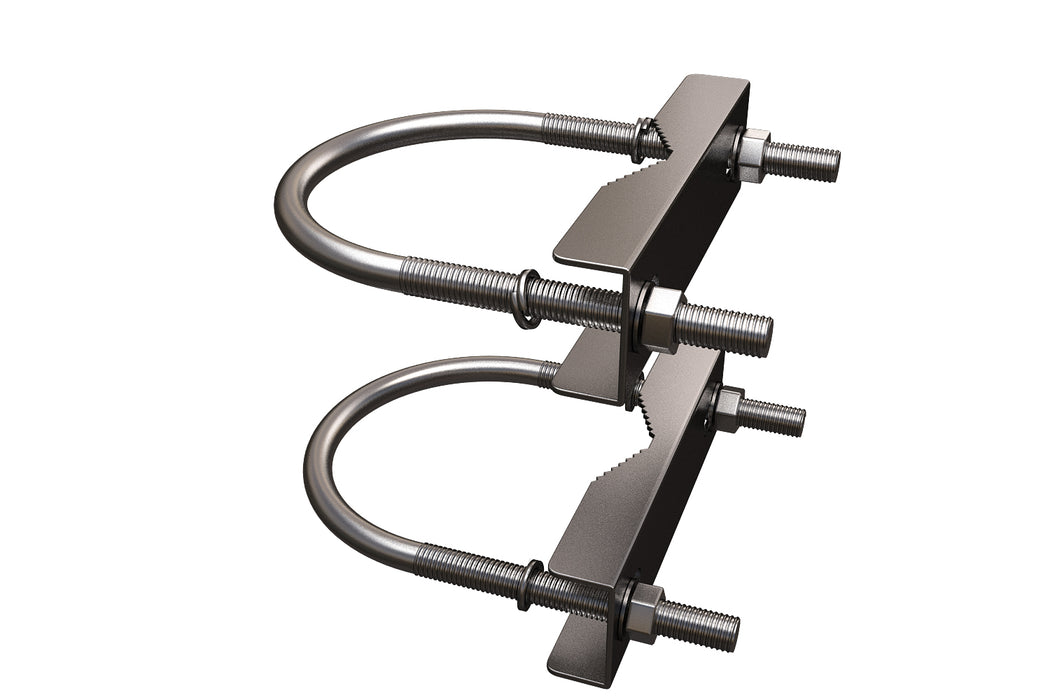

The antenna does not come with a mast pole mount; it comes with two U-bolts which can be used with the attached plate for pole mounting. It allows horizontal or vertical polarization.

The Yagi antenna is used to direct the WiFi beam. It will increase the signal/reception in the direction it is pointing.

This yagi cellular antenna is ideally suited for directional and multipoint 806-960Mhz and 1710-2500MHz band range applications.

Yagi Antenna is the most popular type of directional signal booster antenna in use today. The 9dBi Outdoor Yagi Antenna offers 55 deg Vertical and 65 degrees Horizontal Beamwidth.

The Yagi antenna operates without the need for grounding in most cases. However, you can ground the antenna via the outer conductor of the connector and the cable, or through the mounting hardware. We do, however, recommend you install a lightning surge protector between the cell antenna and a device to prevent a lightning strike to the antenna from damaging your device and equipment.

Installation

The Yagi antenna operates without the need for grounding in most cases. However, you can ground the antenna via the outer conductor of the connector and the cable, or through the mounting hardware. We do, however, recommend you install a lightning surge protector between the cell antenna and a device to prevent a lightning strike to the antenna from damaging your device and equipment.

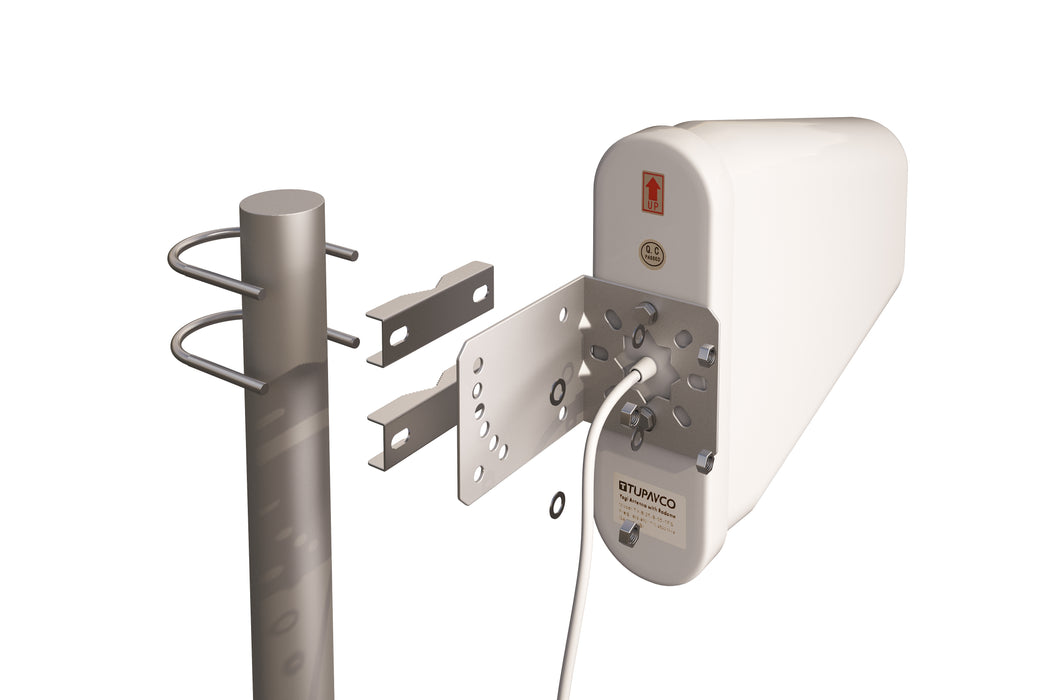

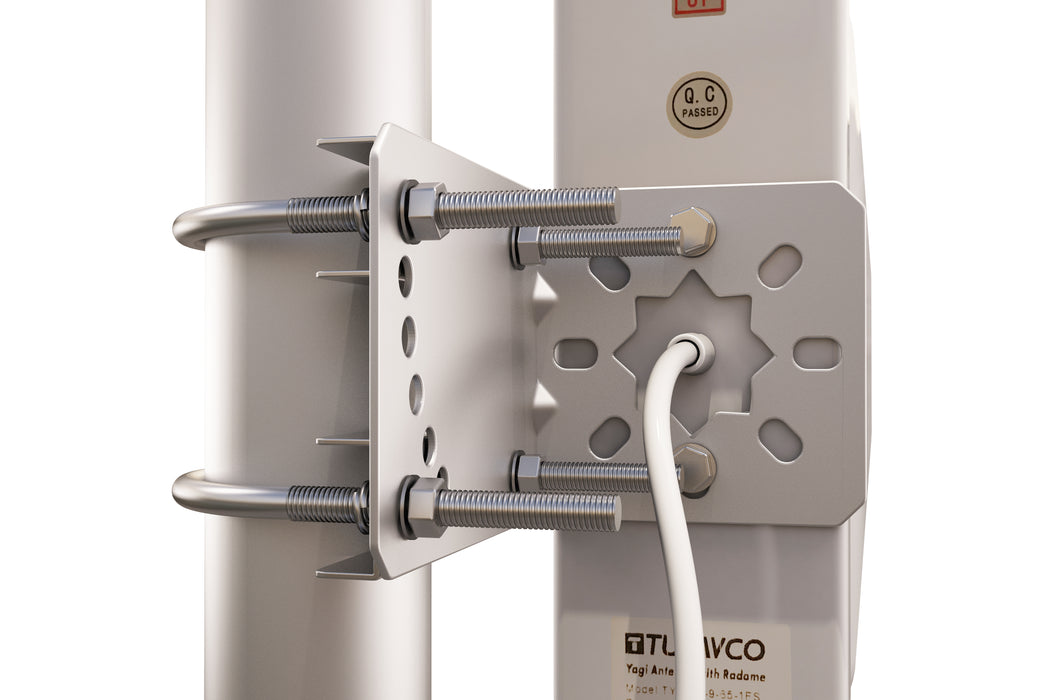

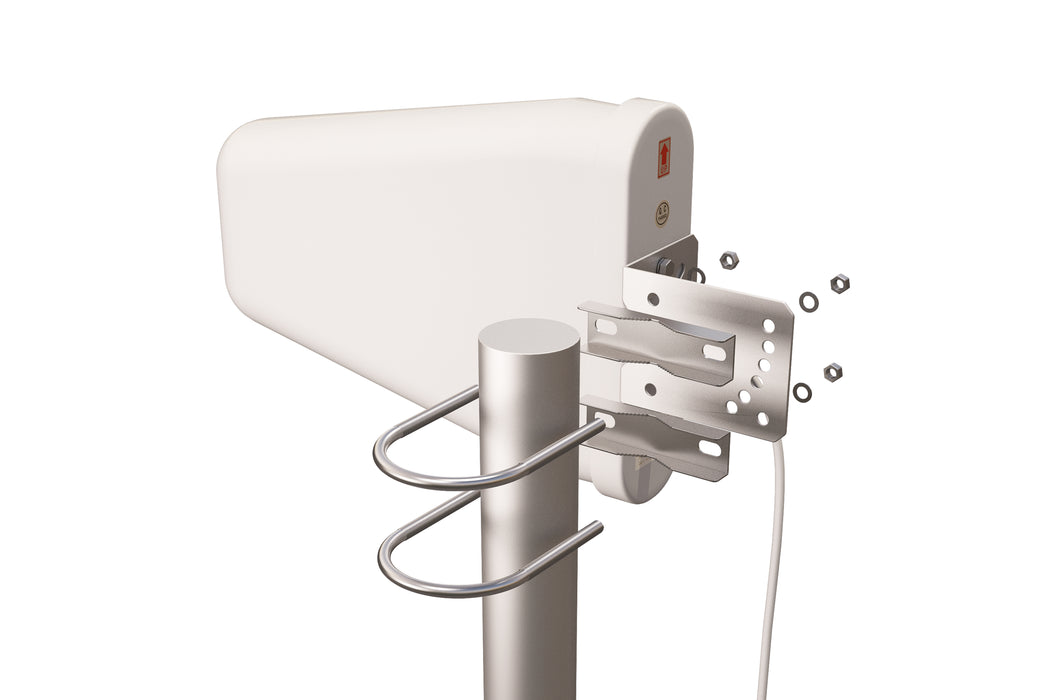

The antenna does not come with a mast pole mount; it comes with two U-bolts which can be used with the attached plate for pole mounting. It allows horizontal or vertical polarization.

Electrical Data:

Frequency: 806-960/1710-2500 MHz
Gain: 9 dBi
VSWR: < 1.5:1
Polarization: Horizontal or Vertical
Horizontal Beamwidth: 65°
Vertical Beamwidth: 55°

Mechanical Data:

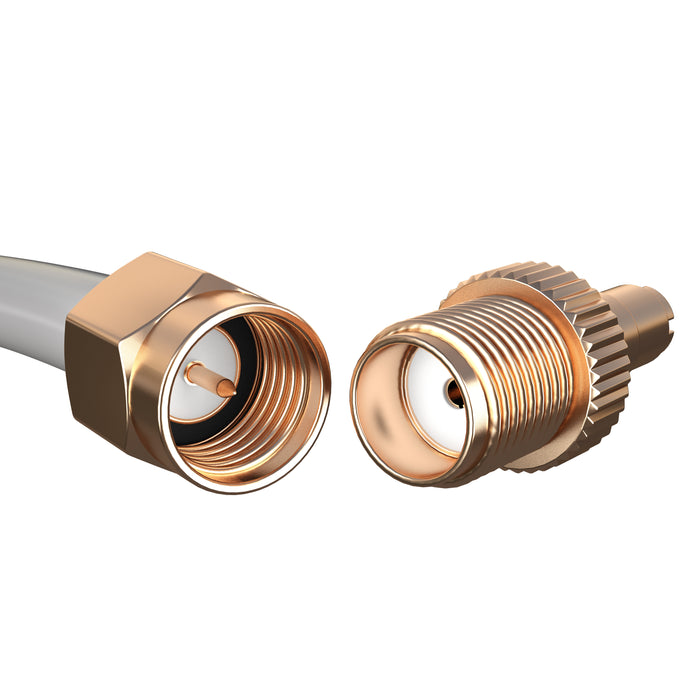

Connector: SMA-Male and TS-9 2FT Cable (SMA-M to TS9 Adapter)
Dimensions: 11.81*8.27*2.56 in
Weight: 1.76 lb
Cable Length: 1ft
Radome Material: Weatherproof ABS
Mounting Method: Mast Size Ø40-Ø50mm
