Camera AZ 610E-AVDL

UPC: 741360888715

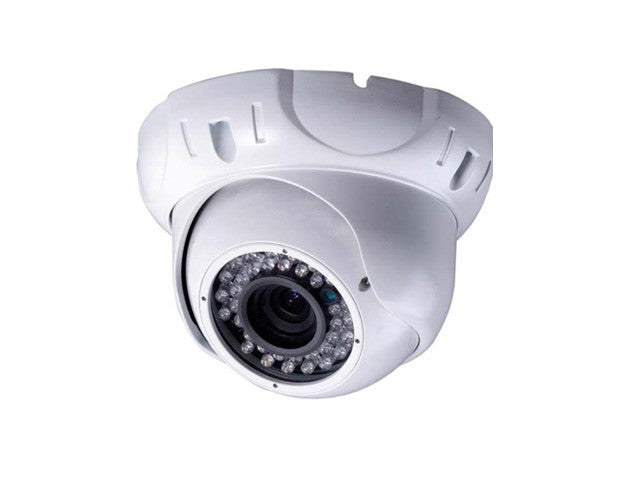

The AZ610E-AVDL is a high performance true day/night IP66 dome camera capable of illuminating subjects up to 120ft from the camera thanks to its built-in IR LEDs. This delivers exceptionally clear images in complete darkness. The AZ610E-AVDL automatically adjusts the intensity of its IR LEDs according to the distance to the subject it is viewing in order to eliminate bright highlights and ensure a perfectly balanced foreground and background image. IR dome camera is ideal for difficult lighting situations.

- 1/3" Sony Effio SUPER HAD CCD II
- High resolution 700 TVL
- Built-in OSD Menu conrolled by cable button
- Built-in 36IR LED Night Vision 120ft
- Infrared lens
- 2MegaPixel 2.8-12mm varifocal lens
- IR night vision 35m
- Vandal-proof Dome Camera
- Outdoor/Indoor installation IP66
- IR day & night Camera
Image device 1/3"Sony Effio SUPER HAD CCD II
Number of effective pixels (H x V) 480,000 pixels (976 x 494)
Signal system PAL/NTSC
Horizontal resolution 700TVL
S/N ratio More than 48dB
Minimum illumination 0Lux/ IR ON
Video output VBS:1.0Vp-p (75Ω)
Synchronization Internal, negative sync
Gain control Auto (on/off)
White balance ATW (2000K to10000K), ATW-PRO (2500K to 6000K)
Lens type 2.8-12mm 2M Pixels lens
Day/Night Yes
Noise reduction Yes
Back light compensation Yes
Weight 920g - 2 lb
Dimensions ￠131 x 93(H) mm (5.1x3.6)
Power requirement DC 12 V ±10 %
Power consumption 1.4 W
Operating temperature -4F° to 140F° (-20 °C to +60 °C)
Storage temperature -40F° to +140F° (-40 °C to +60 °C)
Operating humidity 10 % to 95 %
Storage humidity 10 % to 95 %
Supplied accessories Operating instructions
