Camera AZ33M

UPC: 741360888722

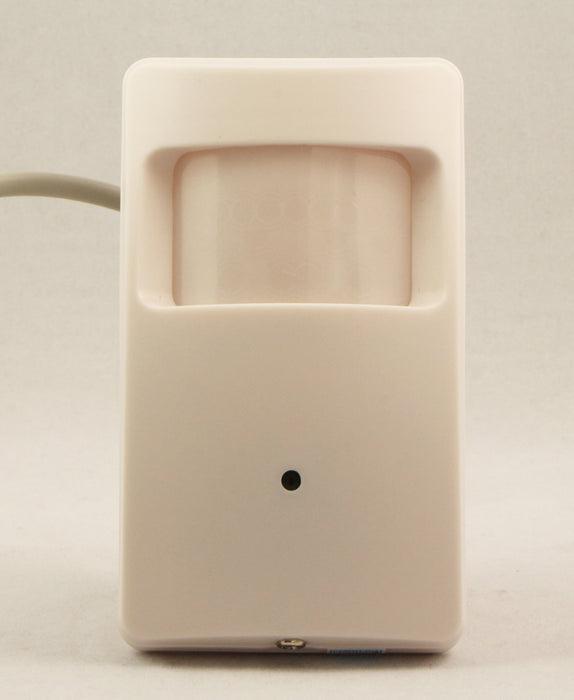

- Built-in 3.7mm pin-hole lens
- Dimension : 123x87x70 mm (5x4x3 in)
- Weight: 5oz

Image Sensor 1/4"CMOS 1030 COLOR
TV System PAL/NTSC
Image Resolution
PAL:500(H)x582(v)
NTSC:500(H)x492(v)
Horizontal Resolution 520TVL
Digital to Analog 12Bit
Minimum illuminator 0Lux/F1.2
S/N Ratio >48dB
AES 1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC)
WDR /
White Balance ATW
AGC AUTO
BLC ON
Gamma Adjusting 0.45
synchronization System Internal Synchronization

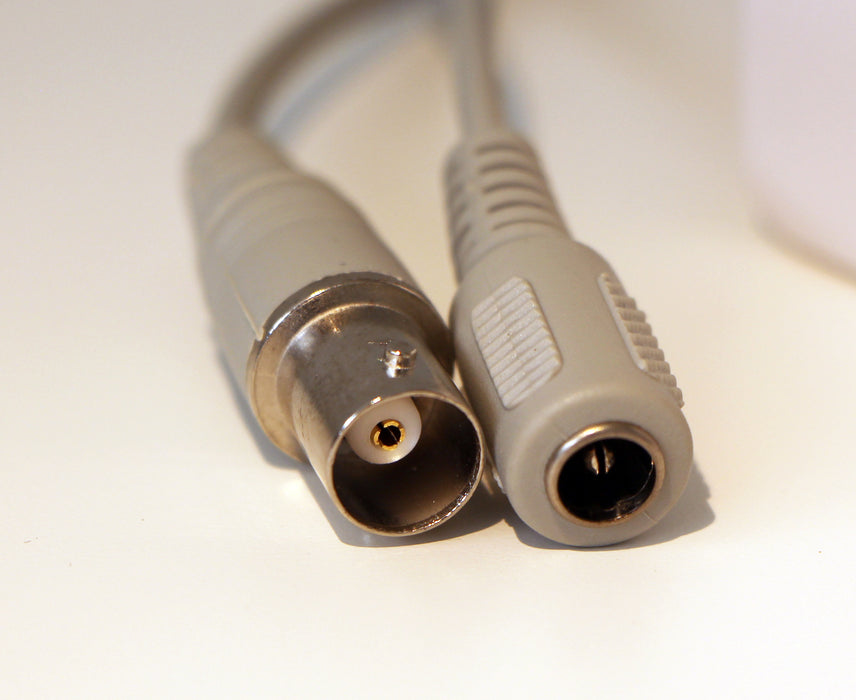

Video Output 1.0Vp-p,75Ω
Voltage DC12V (9V ~ 15V)
Operating Enviroment -20°C~60°C / 10% ~ 95%RH
Demension 123x87x70 mm (5x4x3 in)
Weight 0.2KG
