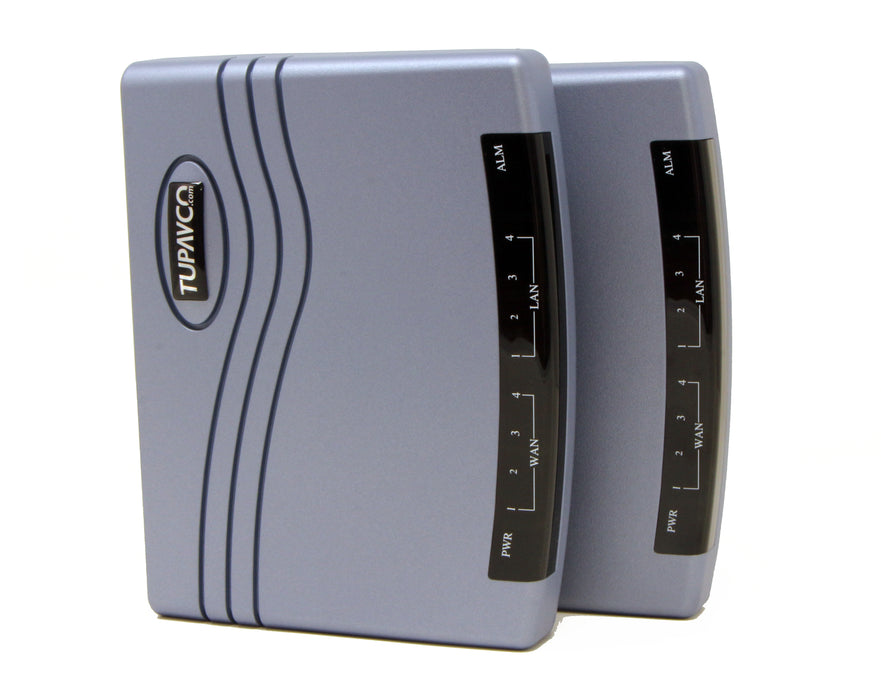

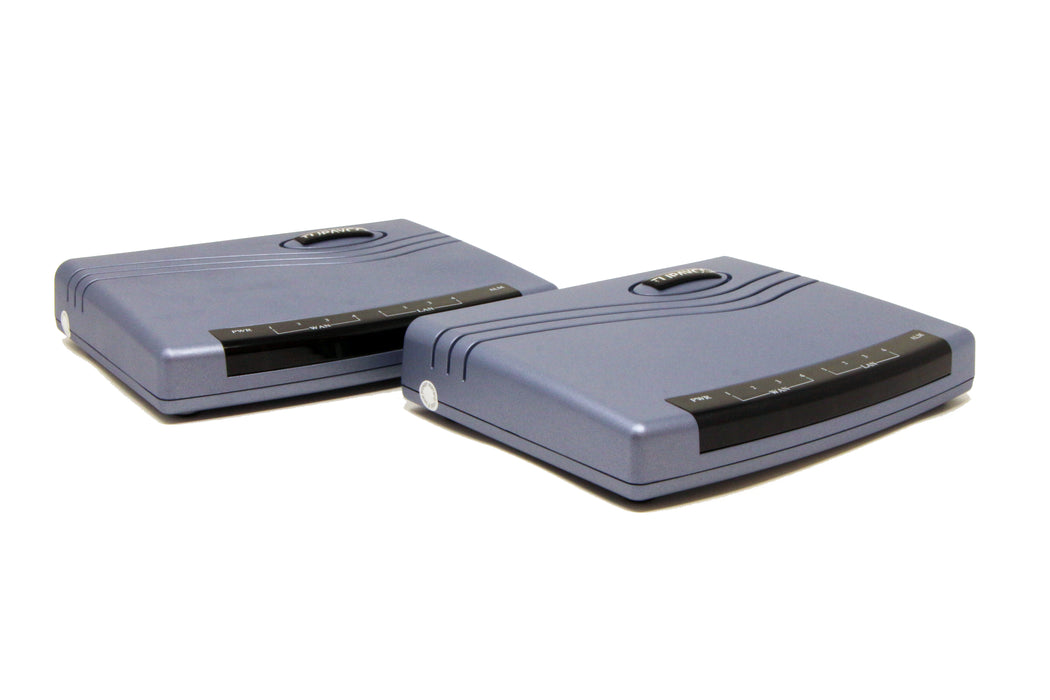

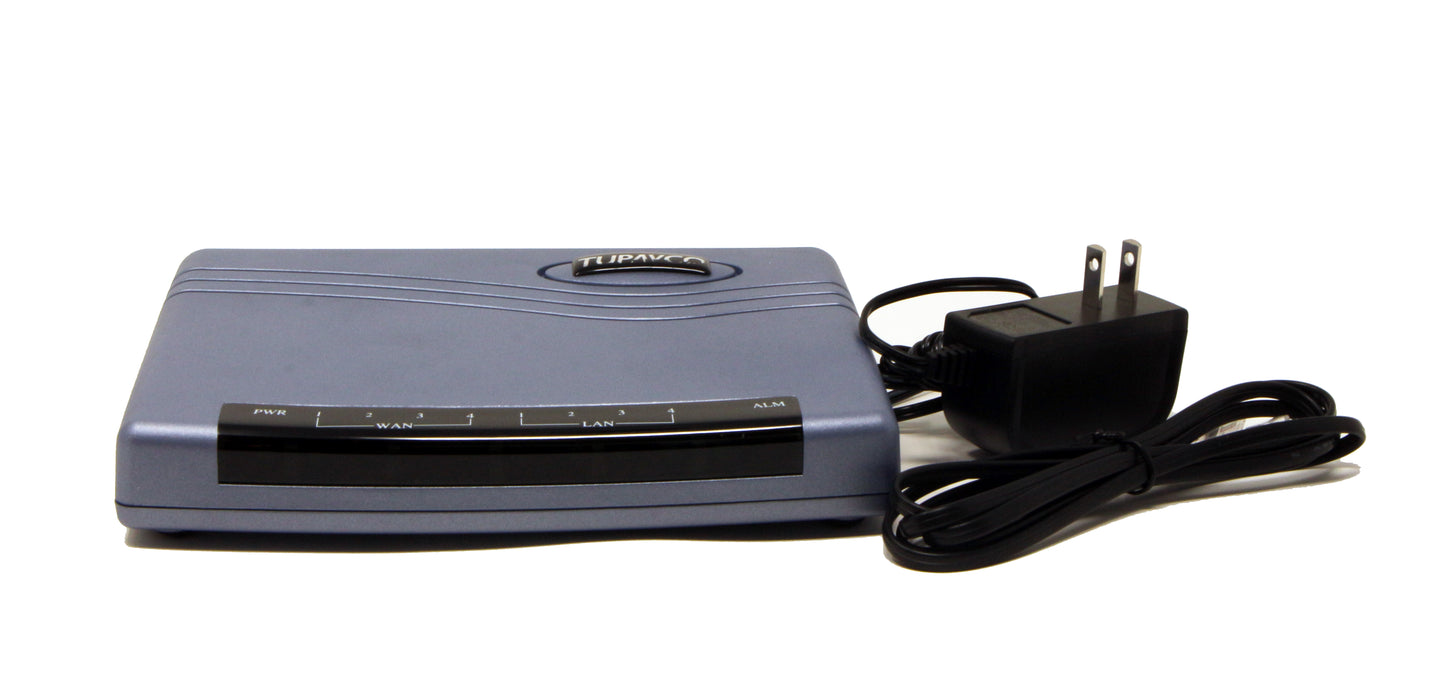

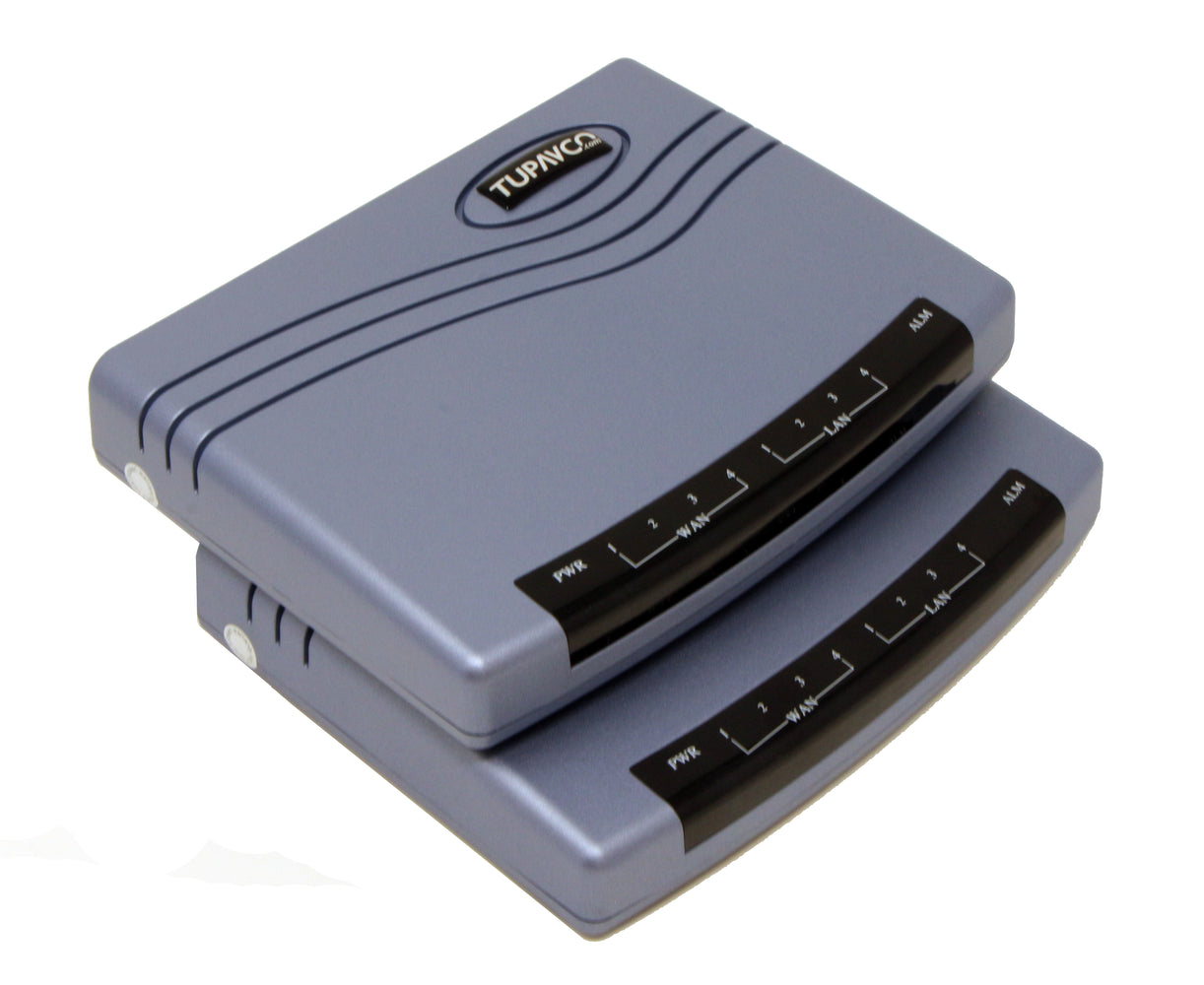

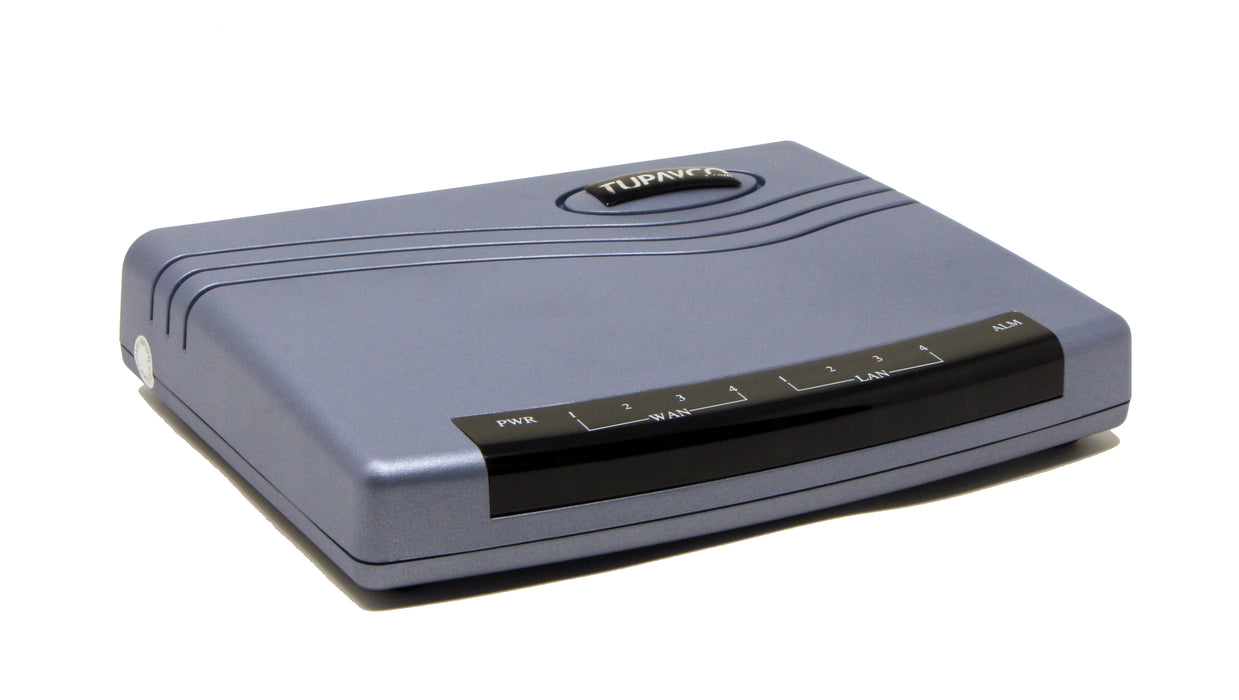

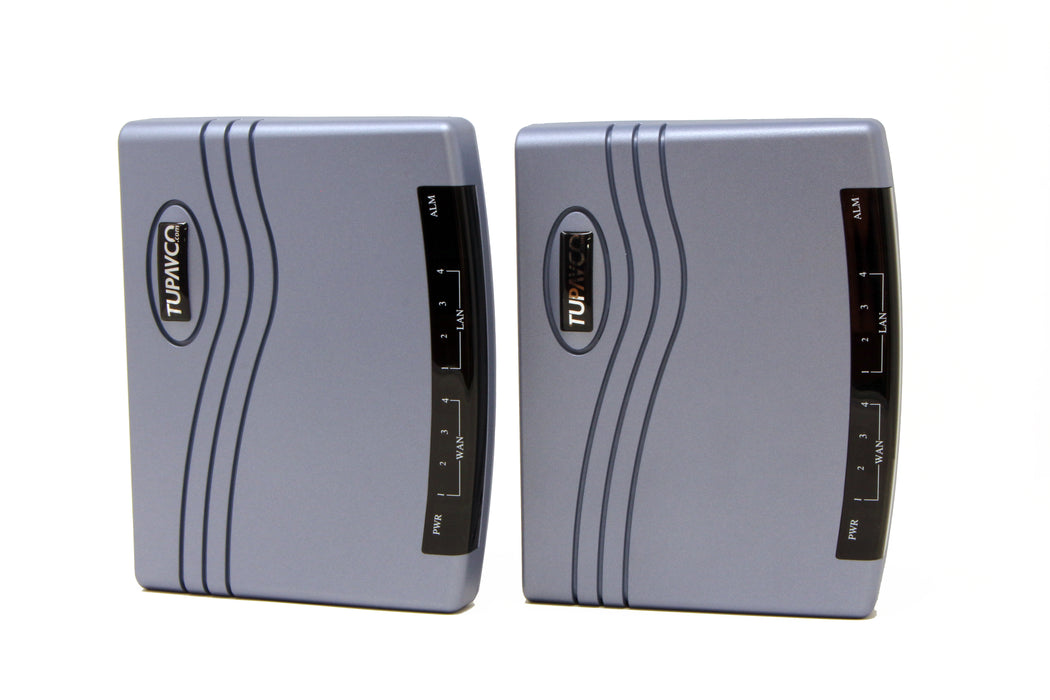

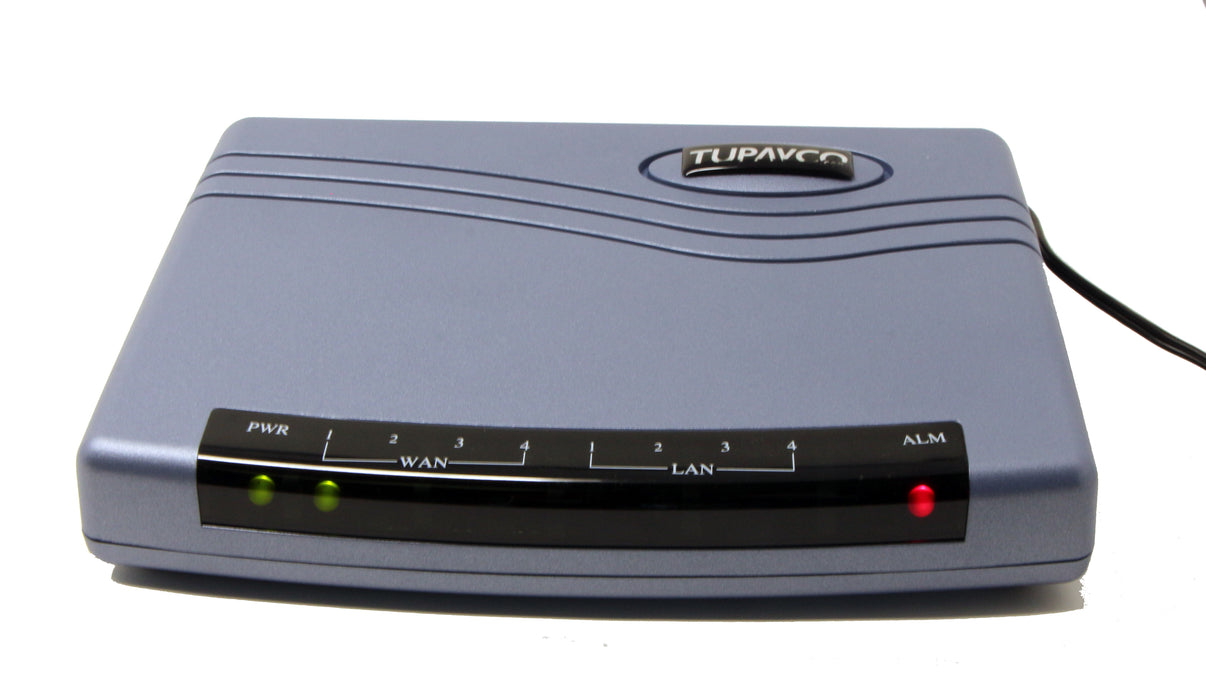

Ethernet Extender Kit (Pair 2pc) Long Range 6 Miles over single Phone Copper Wire or Network Cable

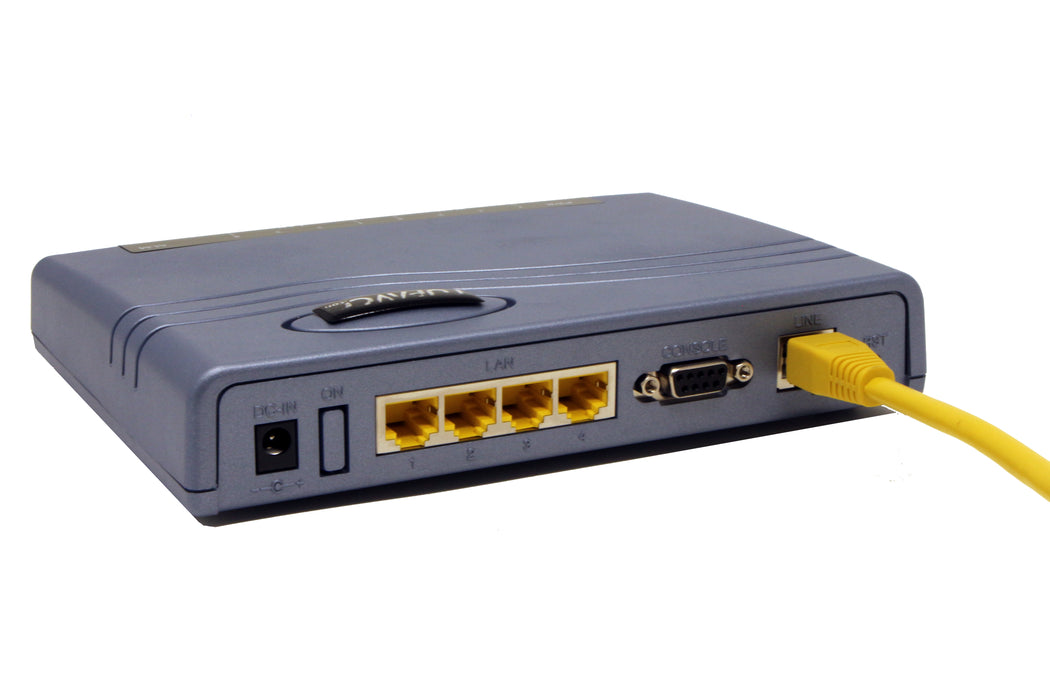

Tupavco TEX-570 is a 2-Wire SHDSL.bis EFM Bridge/Router which complies with the latest G.SHDSL.bis technology standards.
It supports symmetric data rate up to 15.3Mbps per pair under TC-PAM 128. Up to four pairs can be bonded together for aggregated bandwidth over 61 Mbps. It provides a secure and symmetrical high-speed connectivity over existing copper-line infrastructure that is ideal for service providers as well as SOHO and SME users. Data rates are identical for both upstream and downstream direction.

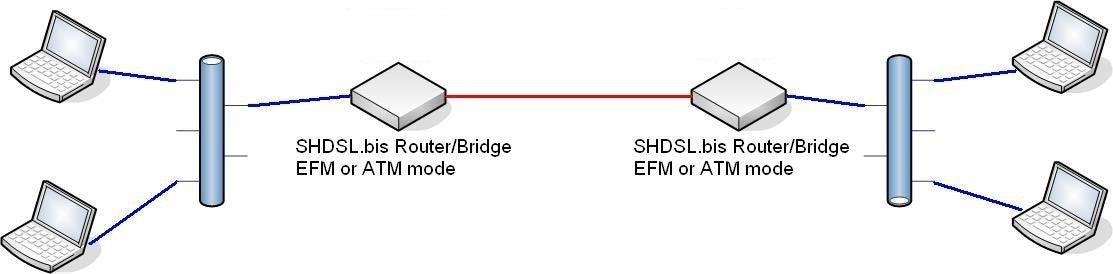

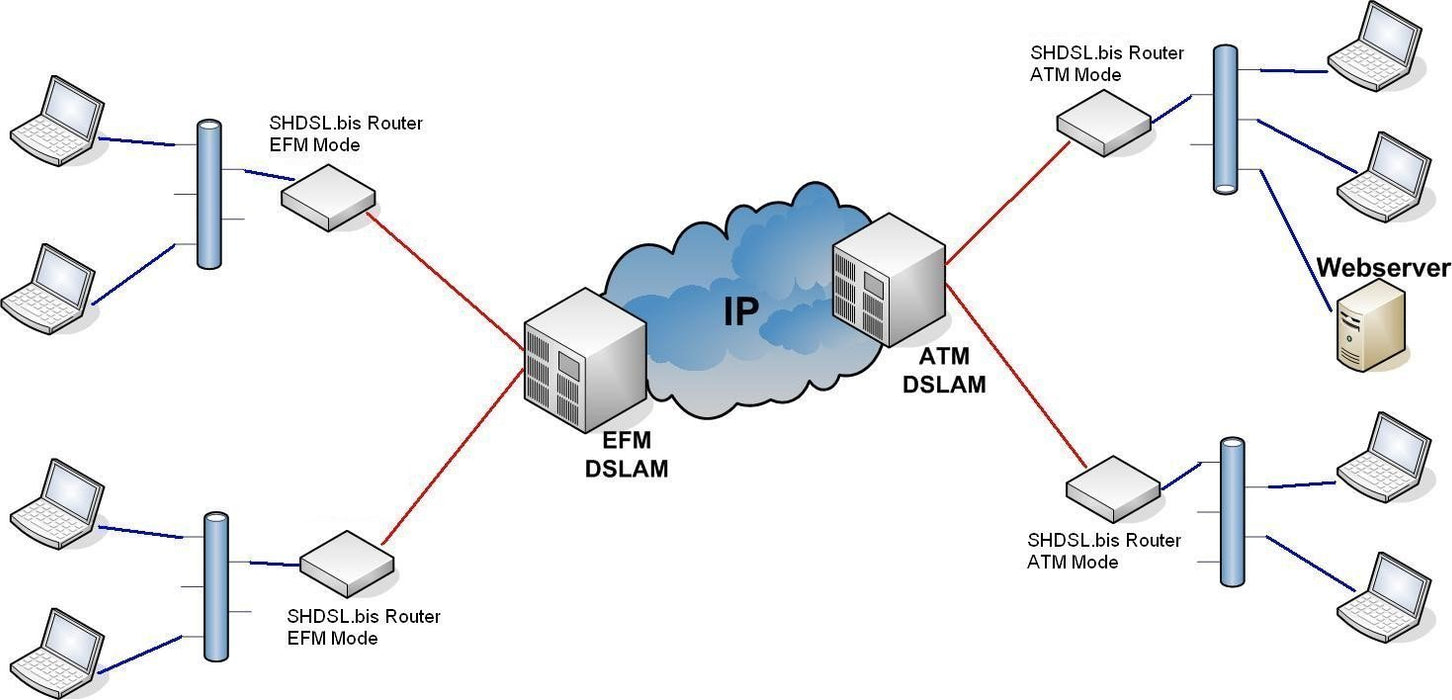

TEX-570 supports back to back connectivity for long reach Ethernet extension. The reach varies according to the loop rate and noise conditions (more noise or higher rate means decreased reach). You can make a direct connection between two SHDSL.bis routers by using a standard telephone cable, and configure one as CO and the other as CPE. The connection offers a cost-effective solution for service providers and SME users who need high-speed dedicated network applications.
The SHDSL.bis EFM routers are integrated with high-end Bridging/Routing capabilities that support flexible traffic management policies and Quality of Service, enabling business-class Ethernet services with the flexibility of mapping user traffic into Ethernet flows.The unit can be managed by different ports and applications including a comprehensive command-line interface (CLI), Telnet, user-friendly GUI-based Web Browser Interface and SNMP.
