LoRa Antenna - 9dBi Omni Directional (900-930MHz) for Helium Hotspot Mining

by Tupavco
Sold out
$86.00

UPC: 638362930057
Model Number: TP580

TP580 900-930Mhz Helium hotspot PoC mining Antenna

The primary use of an antenna is to send and receive signals. Antennas in the range of 900-930MHz are currently most popularly used for Helium Hotspot Mining.

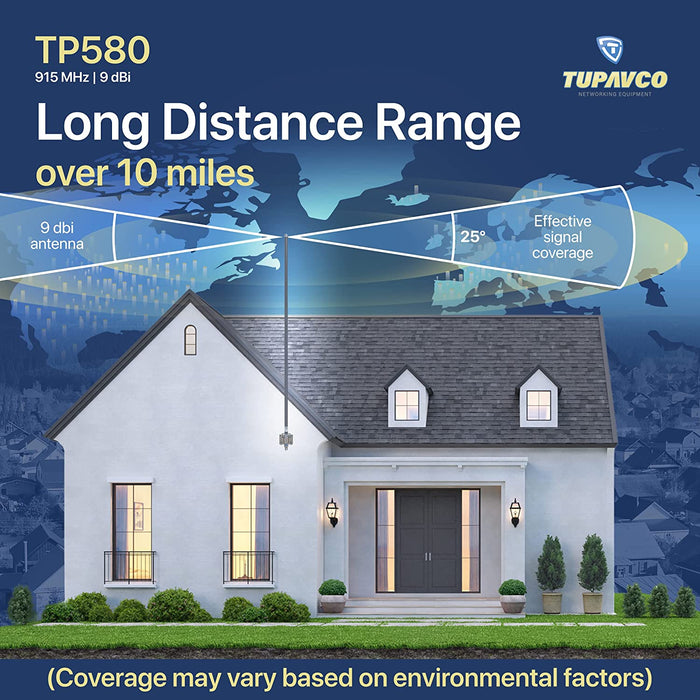

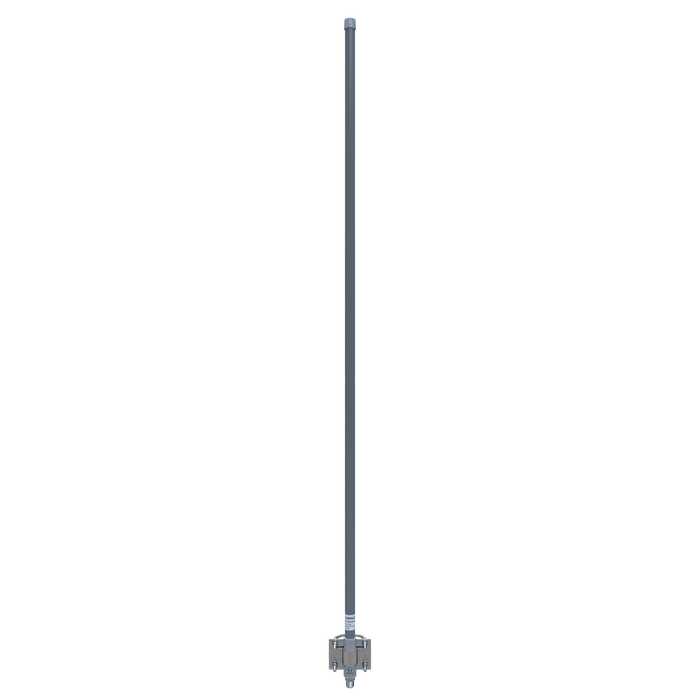

TP580 is an omnidirectional 9dBI antenna capable of enveloping a vast area of space. With its 360° horizontal coverage and 20° vertical beam-width, even placing at the remote location will not be an issue as it is meant to provide a very long range with high gain.

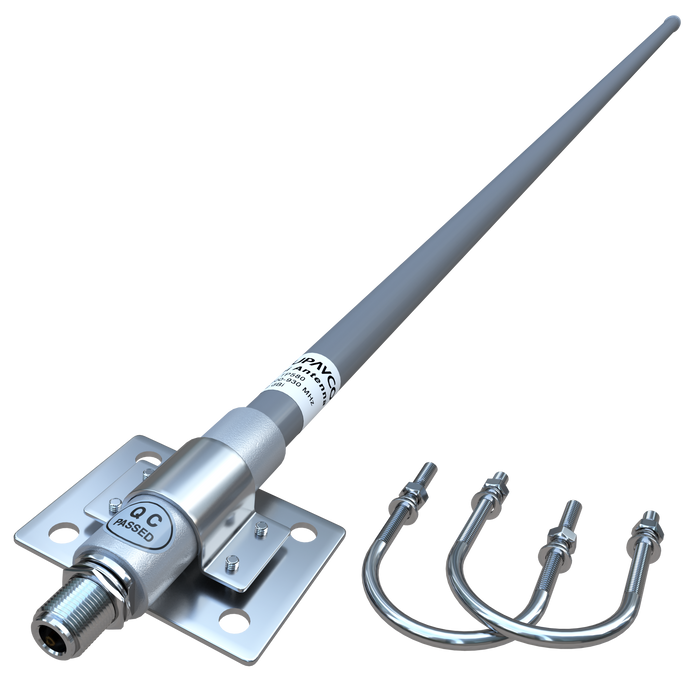

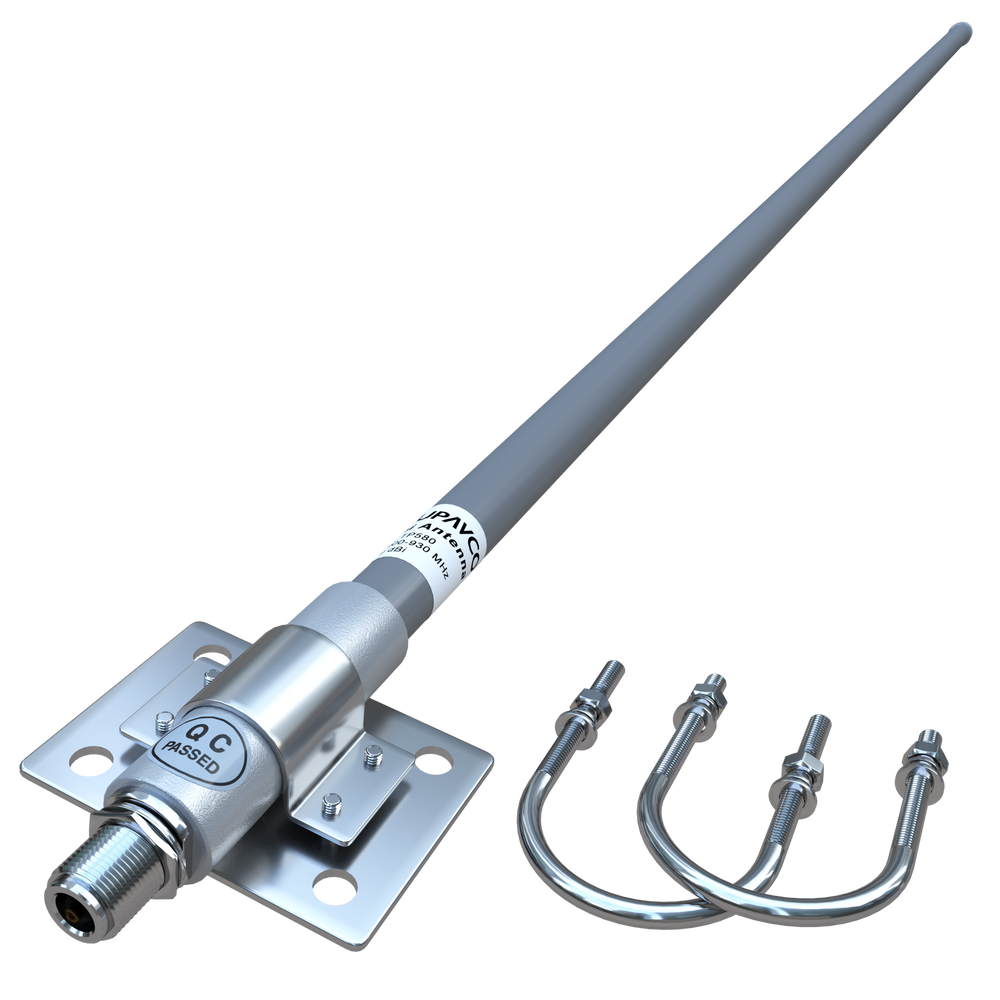

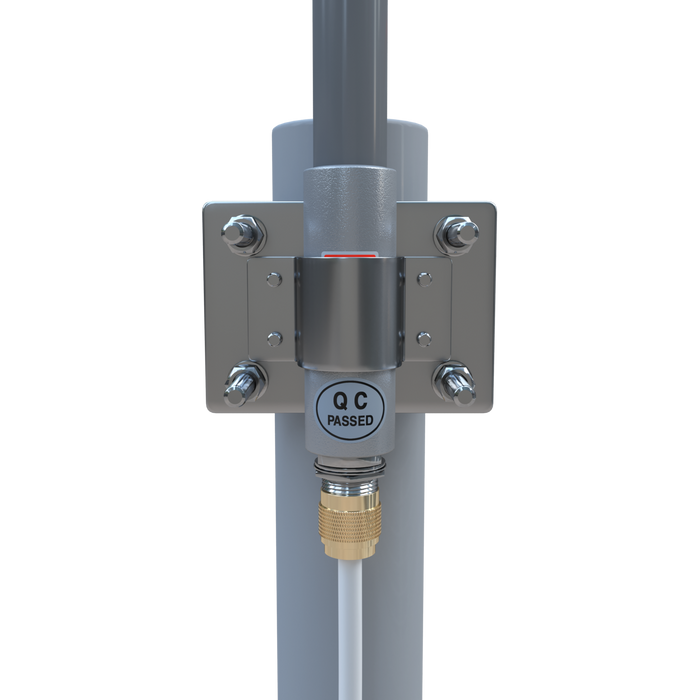

Fiberglass build is further enhancing it, as it is superior to those made from rubber and plastic when it comes to gain. It is best suited for outdoor placing due to its length of 52 inches, perfect for placing on roofs or high places. The antenna is mast-mounted with hardware for setup included with the product.

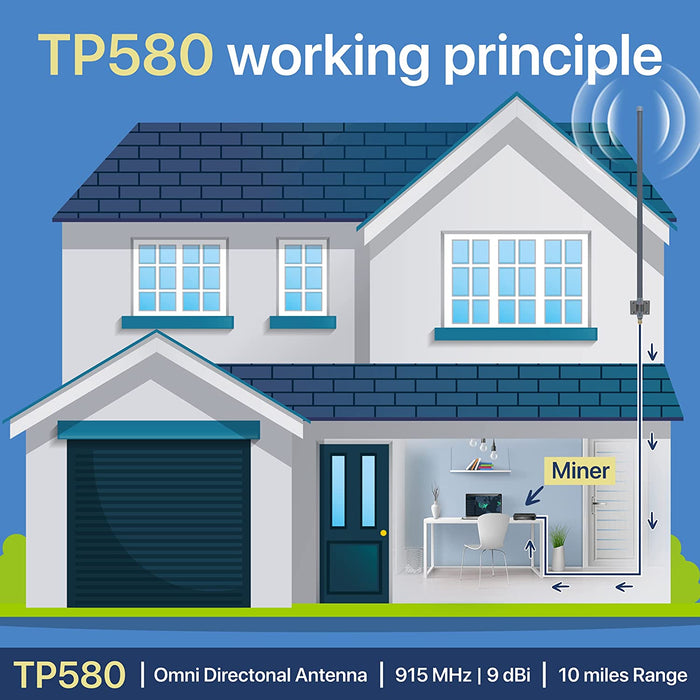

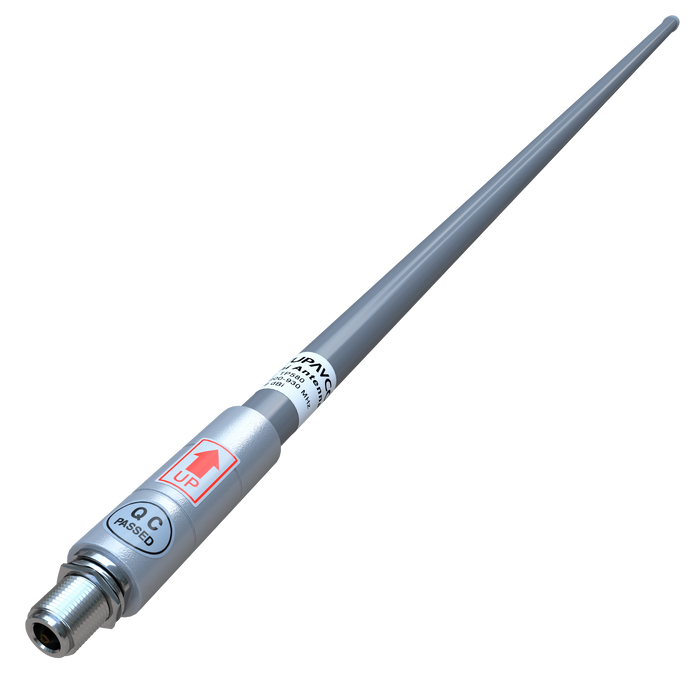

With proper cabling, TP580 is compatible with a wide range of popular Helium Miners. It is equipped with an N-Female connector, so a cable with an N-Male connector on the antenna side is required for connection. Cable length could reduce the signal strength

Electrical Data

Frequency: 900-930 MHz
Gain: 9 dBi
VSWR: <1.5:1
Polarization: Vertical
Horizontal Beamwidth: 360°
Vertical Beamwidth: 20°
Nominal Impedance: 50 Ohms
Max Input Power: 50 W

Mechanical Data

Connector: Female
Dimensions: Ø24*1315mm
(diameter*length): /Ø0.95*51.8in
Weight: 0.6kg/1.3lb
Radome Material: Fiberglass

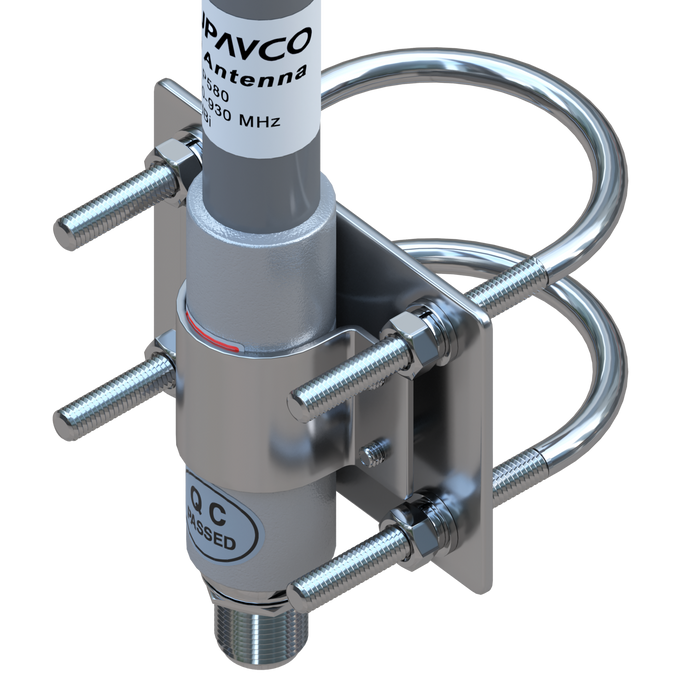

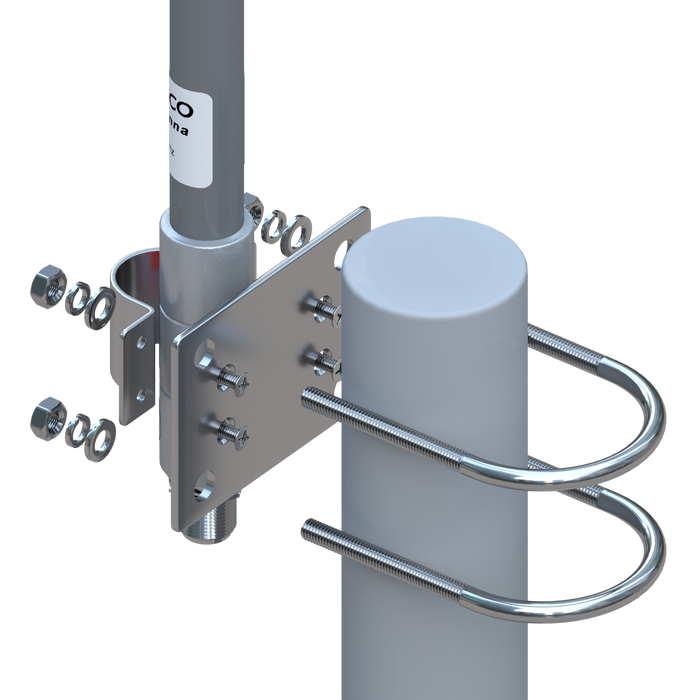

Mounting Method: Mast
Mast Size: Ø25-Ø54mm
Rated Wind Velocity: 210km/h
Operating temperature: -40~+65°C
