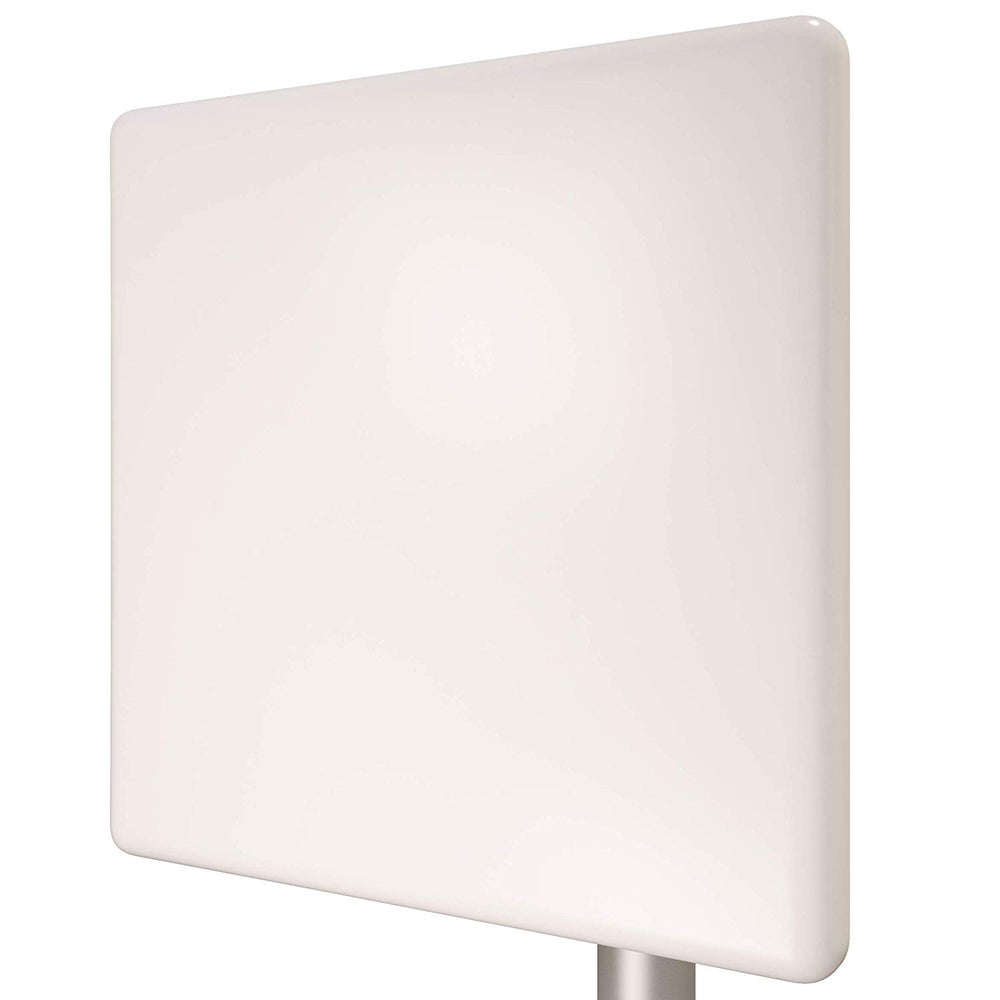

Panel 5Ghz WiFi Antenna - 22dBi - 5Ghz-5.8GHz Wide Range - Outdoor - Directional Wireless
Model Number: TP544
Panel antenna is used to radiate the signal into the forward space. The primary purpose is to reach places where a device with a default antenna would not reach. It is designed for use on stationary objects such as buildings or houses, but it is widely used for remote connection at campgrounds, RV motorhomes, boats, or remote devices like WiFi cameras.
Antenna collects the signal and sends it through the cable to a networking device. It is equipped with an N-Female connector and it is ready to connect to a device with a proper extension cable. It requires a 50 Ohm RF coax expansion cable with N-Male connector on the antenna side and connector type that fits the device on the other side. As a rule of thumb, always use the shortest line and thickest cable to avoid signal loss. Do not use RG59/RG6 coax (75 Ohm TV cable) – signal will be seriously degraded.
5Ghz Bandwidth for more speed and less interference
Higher frequencies allow data to be transmitted faster than lower frequencies, so the 5 GHz band allows you to upload and download files faster and. The 5 GHz band tends to have less overcrowding than the lower frequency bands because fewer devices use it and because it has more channels for devices to use so it experiences a lot less interference. The router or access point device needs to have a detachable external antenna connector that supports external antenna at 5GHz frequency.
Directional Long Range Point-To-Point
This directional antenna is designed for point to point directional wireless applications. To maximize the benefits of this antenna type, point the signal beam to a remote WiFi node. It provides the most focused 22dBi signal in a narrow beamwidth of ~10° horizontally and ~12° vertically.
The distance this antenna can reach may vary based on obstacles on the antenna path to the remote WiFi node like walls, threes, and other objects. The best signal gain is when a “direct line of sight” between the antenna and the remote location is possible.
Frequency: 4900-5875 MHZ
Gain: 22 dBi
Polarization: Horizontal or Vertical
Horizontal Beamwidth: 10°
Vertical Beamwidth: 12°
Nominal Impedance: 50 Ohms
F/B Ratio: >25 dB
Max Input Power: 100 W
Lightning Protection: DC Ground
Reflector Material: Aluminium Alloy
Radome Material: Weatherproof ABS

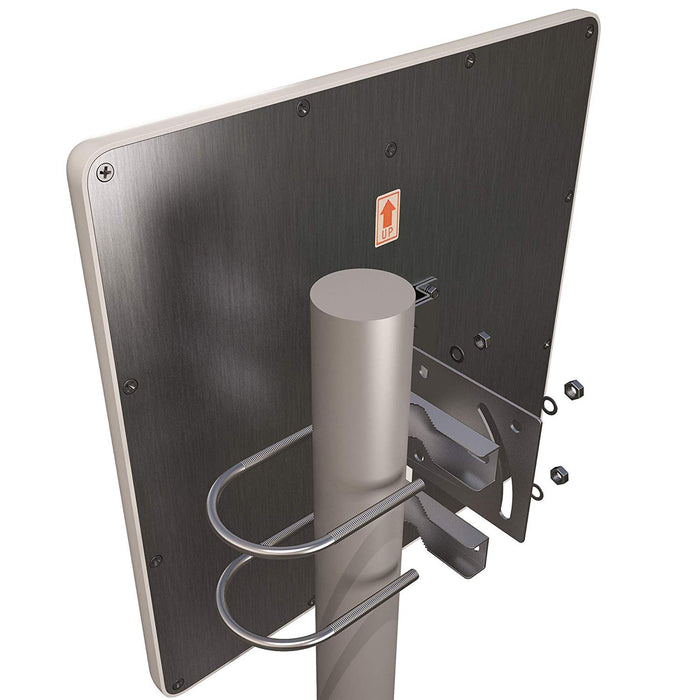

Mounting Method: Mast
Mast Size: Ø30-Ø50mm
Rated Wind Velocity: 210km/h
Operating temperature: -40~+65C
