SFP Ethernet Extender Pair of Lan Pluggable Modules Range 1 Mile over Phone Wire or Network Cable VDSL2

by Tupavco
Sold out

UPC: 638362929518

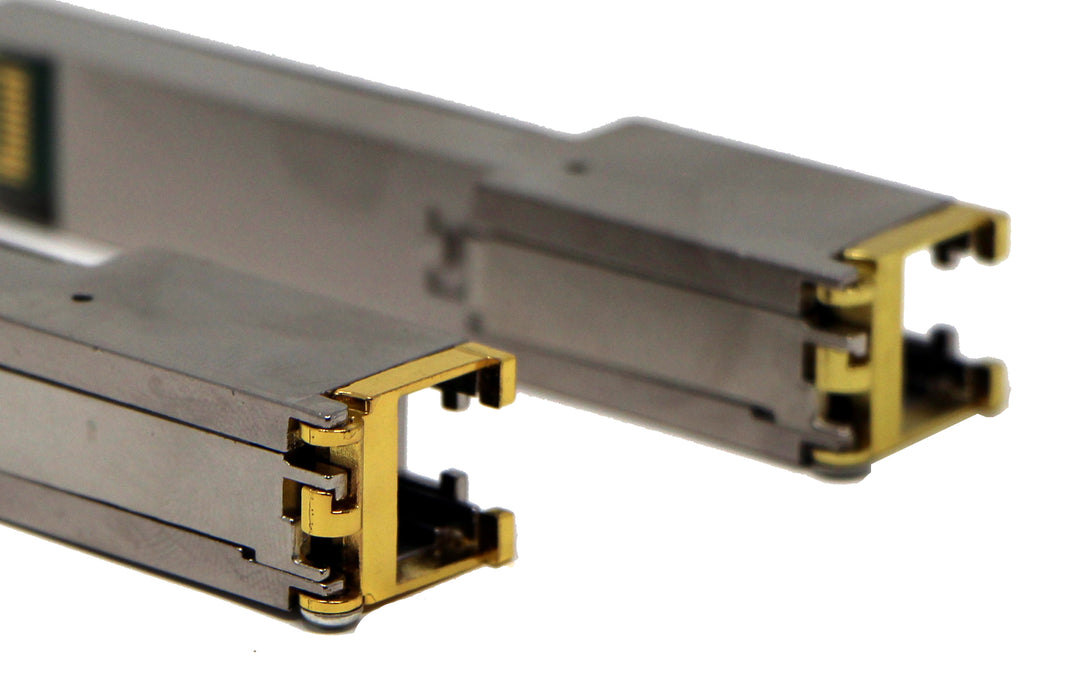

Tupavco TEXS-100 SFP Ethernet Exteder (TEXS-100S Sender and TEXS-100R Receiver Pair) is an integrated SFP bridge modem, an MSA Small-Form Factor Pluggable module that enables traditional Ethernet switch, media converter and other network appliances to connect beyond typical ethernet cable coverage. Incorporated with the latest VDSL2 technology, this SFP VDSL2 modem can be easily adapted to existing applications with existing 2-wire cable, such as phone line, to avoid the cost of rewiring. It can drastically extend the Ethernet service on UTP wire with distance up to 10.000 feet maximum, and even with the rate of 100Mbps speed up to 1500 feet on a standard Cat 5e 2 wire cable.

The SFP modem is also designed with flexible profiles settings for system integrator, or user, to select based on their unique applications and environmental requirements. The symmetric profile can be applied as a standard Ethernet connection while Asymmetric profile can be used for other services like Video streaming or IP surveillance services which require high traffic flow in an uni-direction configuration. The SFP modem also supports Telco grade noise cancellation techniques like Interleave, high SNR profile, and retransmission that can effectively eliminate the noise impact to ensure your service/control messages can securely deliver in a harsh environment.

With long reach coverage, high noise immunity, and compact board size, Tupavco TEXS-100 SFP booster is an ideal upgrade for your Enterprise or Industry applications.

Power requirements: 3.3v, 700mA
Operating temperature: -20~+75°C (SFP cage)
Storage temperature: -40~+85°C
Operating humidity: 5% to 95%
Storage humidity: 5% to 95%
ESD standards: Contact: +/-4KV Air:+/-8KV (EN 61000-4-2)
Radiated RFI standards: Strenght: 10V/m (EN 61000-4-3)
EFT/BURST standards: Power: 2KV signal: 1KV (EN 61000-4-4)
Surge immunity: Power: 2KV Signal: 1KV (EN 61000-4-5)
FCC Certified
