Tupavco TP325 Ethernet Surge Protector / 2.5 Gigabit PoE++ 150W / Gas Discharge Tube

UPC: 850043852124
Model Number: TP325

Double Speed (2.5 Gigabit) & Double Protection (GDT+TVS)

2.5 Gigabit Ethernet Surge Protector (GDT+TVS) is a surge protection device (SPD) that is inserted inline on an RJ45 CAT6/CAT5/CAT5e cable to prevent damage to electronic networking equipment.

Gas discharge tubes (GDTs) are developed to overcome some of the disadvantages of diode-based protectors like energy handling capability and is suitable for almost all surge, whether high or low frequency, it can be intercepted by a gas discharge tube surge arrester so it provides a rigorous spark discharge control performance.

Transient Voltage Suppressors (TVS diodes) offer a very fast response time, often in the picosecond range and clamp the voltage at a lower level providing better protection for sensitive electronic components.

Powerful surges that the device protects against include direct lightning strikes, voltage spikes, or PoE overvoltages. Despite the primary protection (a direct strike to a line), the thunder arrestor also offers secondary protection, which will arrest EMF induced surges (nearby lightning ethernet).

Ethernet Surge Suppressor TP302 use a Gas Discharge Tube (GDT) on all 4 pairs (8 wires).

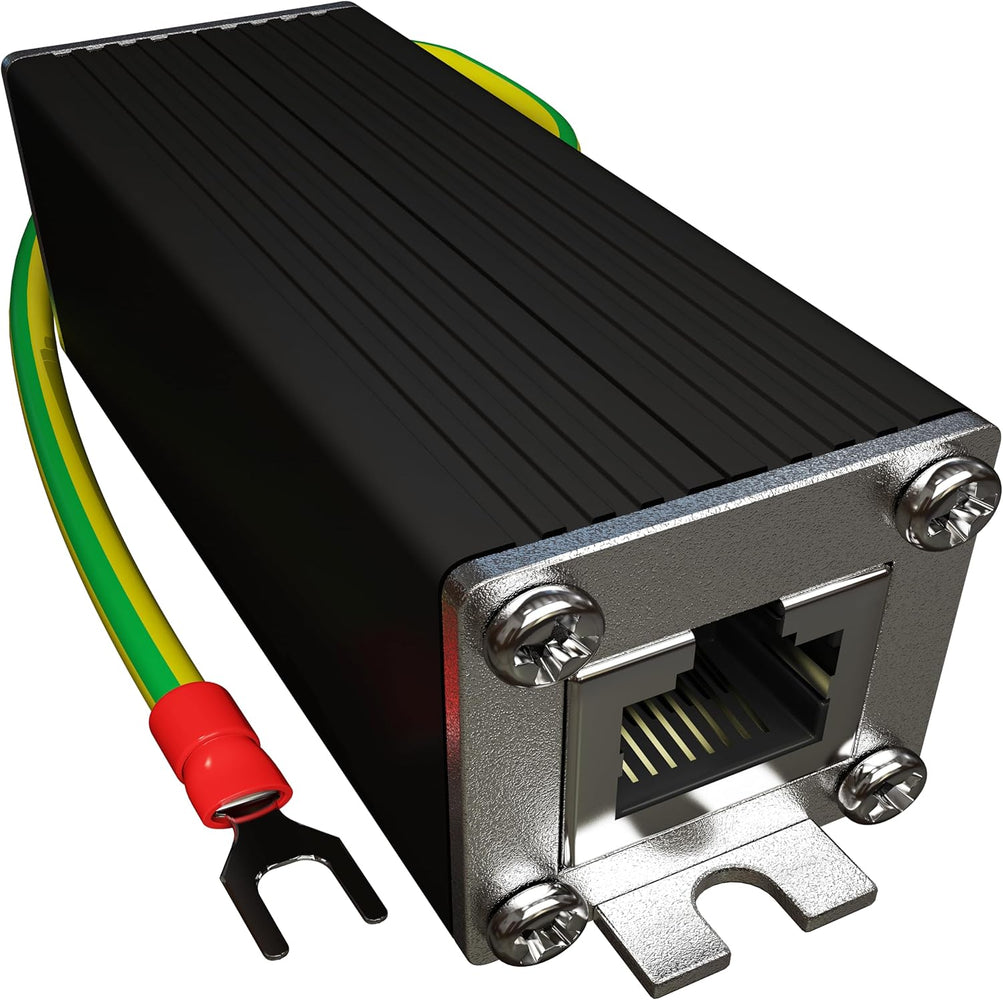

Mounting flange on the both sides of lightning suppressor allows easy mounting to a wall, network panel, cabinet, or rack attaching by screws (not included).

RJ45 Lightning Protection for Gigabit 10/100/1000/2500 (GbE) and High PoE++ Networks

The gigabit surge protector data rate of 2.5 Gigabit 10/100/1000/2500 (GbE) transfer supports an ultra-fast maximum data rate of 2.5 Gigabit per second (Gbps - 2500Mbps) and does not affect the speed performance in the local area network. POE Surge Protector allows a single RJ-45 cable to provide both data connection and electric power to device such as wireless access point, IP and security camera, VoIP phone, computer and others. Surge Arrestor TP302 is designed to protect PSE (power-supply equipment) connected to a network from transient overvoltages.

The lightning protector PoE supports both Mode A (Pins 1,2+ 3,6-) and B (7,8+ 4,5-) of the 802.3af standard. 802.3af (PoE) can deliver up to 15.4 watts per port with 12.95W at the powered device, while 802.3at (PoE+) can deliver up to 30 watts with 25.5 watts available to devices. TP302 supports PoE++, also known as High Poe (IEEE 802.3bt standard), and allows a maximum PoE current of 154W/48V when used on all 4 pairs.

Installation

The Ethernet lightning arrestor must be properly grounded to work. The ethernet ground wire (12 Inch - 16 AWG) on the surge protector needs to be connected to ground through the shortest path. Excess electricity will follow the path of least resistance. In most cases, a ground busbar on an electrical panel or network rack cabinet is already grounded and is typically the easiest way to ground the wire. Other options to ground RJ45 surge protector are grounding block on the breaker panel, grounding rod or terminal of the closest outlet by connecting the ground wire to circular grounding hole on the grounded outlet center screw.

The lightning arrestor can be used with unshielded twisted pair (UTP) or shielded (STP) cables. The arrester is housed in a cast aluminum enclosure. The metal housing allows shielded current to be passed through the metal case of the network surge protector.

Protection Modes Line-Line, Line-Ground

The Line-to-Line ethernet surge protection mode helps protect against short circuits between different nodes of the network system while the Line-to-Ground mode protects against short circuits between the network node and the earth. As it is not known where the transient will happen, having both modes protected ensures damage is minimized. Nominal Discharge Current of 20KA defines the peak value of the current that can be passed through the SPD having a waveshape of 8/20μs microsecond where the RJ45 lightning arrestor remains functional after 15 surges.

Once the surge protector ethernet voltage exceeds its designed rating it “begins to clamp” and starts to conduct energy directly to the electrical grounding system. A bidirectional clamping on CAT5 surge protector allows levels above and below the reference voltage by clamping the voltage that can cause damage.

Specifications

Multidirectional

Ethernet network surge protector works in both directions (IN/OUT), so the source input signal cable can be connected to any side. It is not important which side the equipment is behind, however the surge protector will protect networking equipment only on the opposite side of where surge occurs. To protect devices on both sides, it is recommended to have one of the surge protectors on each end of the RJ45 cable in the network topology.

• Nominal Discharge Current (8/20μs): 20 KA
• Nominal PoE voltage : <60V
• PoE current: 1.6 A / 2 pairs, 3.2 A / 4 pairs
• PoE Mode Support Mode A and B for Power
• Protection Modes Line-Line, Line-Ground
• Tested standards IEC 61643-21, IEC61000-4-5
• Clamping Voltage Line-Ground: 72 Volts
• Clamping Voltage Line-Line: 72 Volts
• Impedance 100 ohms
• Operating Temperature -40°C (-40°F) to +80°C (+176°F)
• Outside Dimensions (W*L*H) 26*26*70 mm
• Weight: 60 g
